Geared mounting tool

The geared tensioner is powerful and easy to use. With a input torque of 30Nm (22 ftlb) the tool provides a tensioning force of 3 ton (6600 lbs). The exchangeable claws ensure a perfect fit to all Olofsfors tracks with optimal grip and precision.

The tensioner reduces mounting time to a minimum, allowing you to spend your time on business. The only additional equipment needed is a cordless drill to ensure successful mounting of your Olofsfors Tracks.

Read the instructions carefully.

Spare part kit

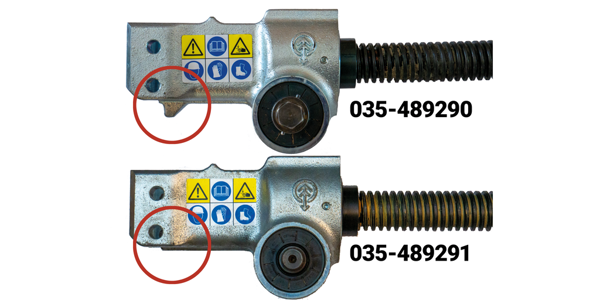

Spare part kit containing threaded rod, complete with mounting parts and grease. Note the design of the tensioner to order the correct spare part kit.

Link to assembly instruction (PDF).

Choose the right tracks for your machine

1. Cross member

Our nine profiles provide different degrees of grip and flotation. EX, OF, and EVO gives better grip while U, Baltic, and CoverX are unbeatable for flotation. ECO, KovaX, and Combination are our all-round profiles.

2. Cross member type

Material thickness, Light, Normal and Plus. Applicable for certain track types:

Light: Lighter cross members for forwarders with a load capacity up to 12 ton or harvesters with a machine weight up to 15 ton.

Normal: Standard size cross members for forwarders with a load capacity between 12-20 ton or harvesters with a machine weight up to 25 ton.

Plus: Our strongest cross members for forwarders with a load capacity up to 20 ton.

For forwarders with payloads exceeding 20 tons, please consult with your Olofsfors dealer.

3. Link system

Choose between 22, 26, 29, 30 mm or Max based on machine size and terrain. Smaller link systems for lighter machines. Larger machines or machines that run in wet ground require more powerful link systems. Max has more moving parts which reduces wear.

4. Version

We offer standard, soft or narrow versions for your cross-member ends. Soft protects the tire side better for example against stones and narrow fits when you have less space.

5. Position

Customize the position of the cross member on your machine. Select the asymmetric position or one side short to get maximum flotation capacity if your tires have little space against the machine.

6. Cleat

Add cleats to your track to increase the grip of the machine and reduce wear on the cross members. You can choose single cleat, double cleat, road cleat, or without cleats.

Want to know more?

Download the folder with our product recommendations below to get a comprehensive picture of our tracks and more detailed information.

Subscribe to our channel

See product videos and learn more about Olofsfors' product range by subscribing to our YouTube channel.

Documents and links

Geared Mounting Tool Instruction, SV, EN, DE, FI, ES, PT, FR and RU
Mounting Instruction Bogie Tracks
Mounting Instruction Wheel Tracks
Welding Instruction ECO-Tracks
