1. Cross member

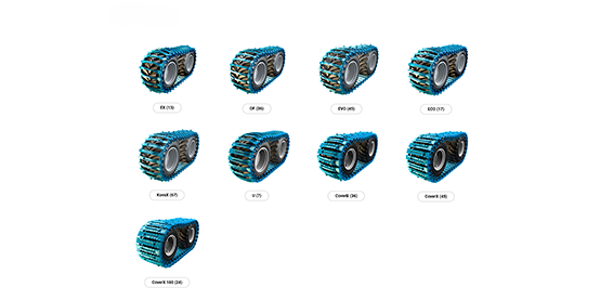

Our nine profiles provide different degrees of grip and flotation. EX, OF, and EVO gives better grip while U, Baltic, and CoverX are unbeatable for flotation. ECO, KovaX, and Combination are our all-round profiles.

2. Cross member type

Cross member thickness, Light, Normal and Plus. Applicable for certain track types:

Light: Lighter cross members for forwarders with a load capacity up to 12 ton or harvesters with a machine weight up to 15 ton.

Normal: Standard size cross members for forwarders with a load capacity between 12-20 ton or harvesters with a machine weight up to 25 ton.

Plus: A stronger cross member for forwarders with a load capacity between 15-20 tons.

For forwarders with payloads up to 25 tons, please consult with your Olofsfors dealer.

3. Link system

Choose between 22, 26, 29, 30 mm or Max based on machine size and terrain. Smaller link systems for lighter machines. Larger machines or machines that run in wet ground require more powerful link systems. Max has more moving parts which reduces wear.

4. Version

We offer standard, soft or narrow versions for your cross-member ends. Soft protects the tire side better for example against stones and narrow fits when you have less space.

5. Position

Customize the position of the cross member on your machine. Select the asymmetric position or one side short to get maximum flotation capacity if your tires have little space against the machine.

6. Cleat

Add cleats to your track to increase the grip of the machine and reduce wear on the cross members. You can choose single cleat, double cleat, road cleat, or without cleats.
